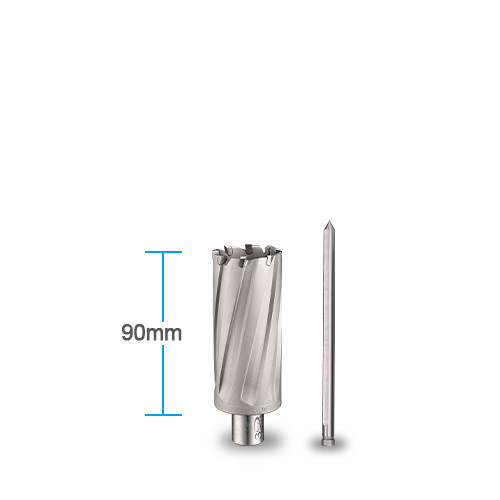

Annular Cutter HC Standard
Annular cutter HC Type is one of the most popular products of 3keego. HC type is made of Tungsten Carbide Micro Grade material that provides durability and extended tool life.
Category: HC StandardFeatures
Ideal for Thick Metal Plate
- Special cutting edge geometry designed teeth.
- Engineered spiral flute for clean chip removal.
- For heavy-duty drilling.
Tungsten Carbide Micro Grade
- Drilling Depth: 25mm, 35mm, 50mm, 75mm, 110mm thick.
- Effective length: 40mm, 50mm, 70mm, 90mm, 120mm deep.
Specifications
| HC Standard Type | |||||
|
|
|
|
|
|
| Type |
HC 25 |
HC 35 |
HC 50 |
HC 75 |
HC 110 |
| Material type | Tungsten Carbide Tipped (TCT) | Tungsten Carbide Tipped (TCT) |
Tungsten Carbide Tipped (TCT) |
Tungsten Carbide Tipped (TCT) |
Tungsten Carbide Tipped (TCT) |
| Drilling depth (mm) | 25 | 30 | 50 | 75 |
110 |
| Effective length (mm) | 40 | 50 | 70 |
90 |
120 |
| Diameter range (mm) | 14 - 40 (1/2" - 1-1/2") |
12 - 50 (1/2" - 2-7/16") |
12 - 70 (1/2" - 2-3/4") |
16 - 70 (11/16" - 3") |
18 - 70 (11/16" - 3") |
| Pilot pin (mm) | Ø6.34 x 4.8 x 91L |
Ø4.74 x 3.6 x 91L Ø8 x 91L |
Ø4.74 x 3.6 x 112L Ø8 x 112L |
Ø8 x 138L |
Ø8 x 175L |
| Shank | Weldon Fein Nitto Alfra |
Weldon Fein Nitto Alfra |
Weldon Fein Nitto Alfra |
Weldon Fein Nitto Alfra |
Weldon Fein Nitto Alfra |
| Coating |
Standard |
Standard |
Standard |
Standard |
Standard |
| Set |
√ |
√ |
√ |
√ |
√ |
| Applications | |||||
| Steel | √ |
√ |
√ |
√ |
√ |
| Stainless steel | √ |
√ |
√ |
√ |
√ |
| Cast iron | √ |
√ |
√ |
√ |
√ |
| Aluminum | √ |
√ |
√ |
√ |
√ |
| Stacked steel |
- |
- |
- |
- |
- |
| Railway | - |
- |
- |
- |
- |
| Hardox |
- |
- |
- |
- |
- |
| Machine | |||||
| Portable drilling machine | - | - | - |
- |
- |
| Pillar drilling machine | - | - | - |
- |
- |
| Magnetic drilling machine | √ |
√ |
√ |
√ |
√ |
