Annular Cutter HCB
3keego annular cutter HCB type is an economical type of Tungsten Carbide Tipped (TCT) drilling tool with a high-quality output. HCB type is manufactured with a 35mm and 50mm cutting depth.
Category: HCBFeatures
Ideal for Thick Metal Plate
- Cutting flange prevents over the drill.
- The slug will be ejected by a pin when cutting is finished.
- Special cutting edge geometry designed teeth.
- Engineered spiral flute for clean chip removal.
- For heavy-duty drilling.
Tungsten Carbide Micro Grade
- Drilling Depth: 35mm, 50mm thick.
Specifications
| HCB Type | ||||||||
|
| |||||||

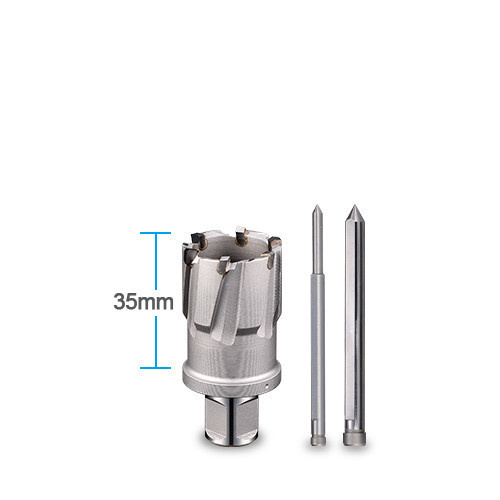

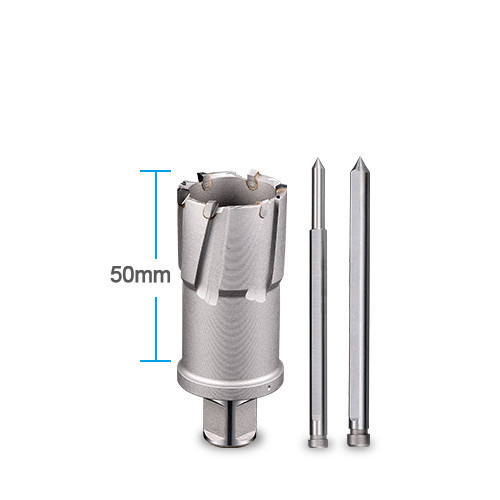

| Type | HC 35B | HC 50B | ||||||
| Annular cutter | Tungsten Carbide Tipped (TCT) | Tungsten Carbide Tipped (TCT) | ||||||
| Cutting depth | 35 mm | 50 mm | ||||||
| Nominal diameter | ||||||||
Metric (mm) | Ø12mm ~ Ø35mm | Ø12mm ~ Ø50mm | ||||||
Imperial ( " ) | Ø1/2" ~ Ø1-1/2" | Ø1/2" ~ Ø2" | ||||||
| Ejector pin | ||||||||
Ø15.9 below | Ø4.74 x 3.6 x 91L | Ø4.74 x 3.6 x 112L | ||||||
Ø16 above | Ø8 x 91L | Ø8 x 112L | ||||||
| Shank | Weldon shank (Ø19.05mm) | Weldon shank (Ø19.05mm) | ||||||
| Coating | Standard | Standard | ||||||
| Applications | ||||||||
| Steel | √ | √ | ||||||
| Stainless steel | √ | √ | ||||||
| Cast iron | √ | √ | ||||||
| Aluminum | √ | √ | ||||||
| Stacked steel | - | - | ||||||
| Railway | - | - | ||||||
| Hardox | - | - | ||||||
| Machine | ||||||||
| Portable drilling machine | - | - | ||||||
| Pillar drilling machine | - | - | ||||||
| Magnetic drilling machine | √ | √ | ||||||
| Suitable Adapter | ||||||||
| Fein to Weldon | √ |
√ |
||||||
| One Touch to Weldon | √ |
√ |
||||||
| Adapter pin | ||||||||
Ø15.9 below | Ø4.74 x 3.6 x 112L | - | ||||||
Ø16 above | Ø8 x 112L | Ø8 x 132L | ||||||
| Suitable Extensions | ||||||||
| 50L | √ |
√ |
||||||
| 75L |
√ |
√ |
||||||
| 100L |
√ |
√ |
||||||
| 150L |
√ |
√ |
||||||
| 200L |
√ |
√ |
||||||
| 250L |
√ |
√ |
||||||
